The schematic is wired as shown in the diagram below. The base current is set by the voltage from PV2, through a 100k resistor. The base voltage is measured to calculate the base current from Ib = (PV2-A2)/100K. The collector voltage is monitored by A1. The collector is connected to PV1, through a 1k resistor. For a selected base current, the voltage at PV1 is incremented in steps and at each step the collector voltage is measured. Corresponding collector current is calculated from i = (PV1-A1)/R. The transistor  used is 2N2222, having a current gain of around 200.

image2 image3

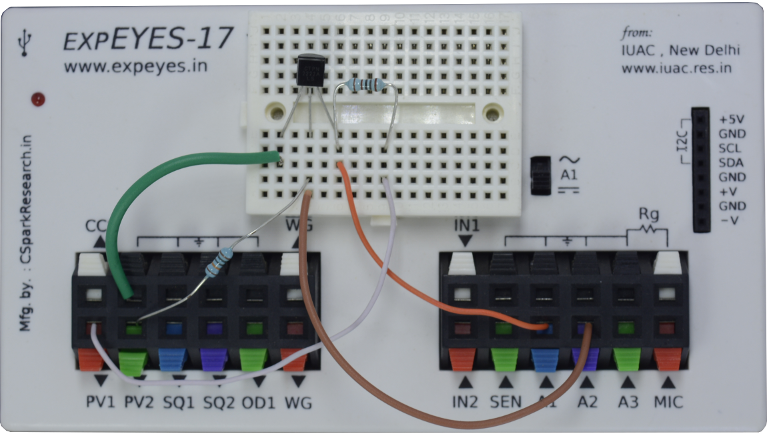

Wiring Diagram Photograph of the experimental setup. Transistor is  2N2222

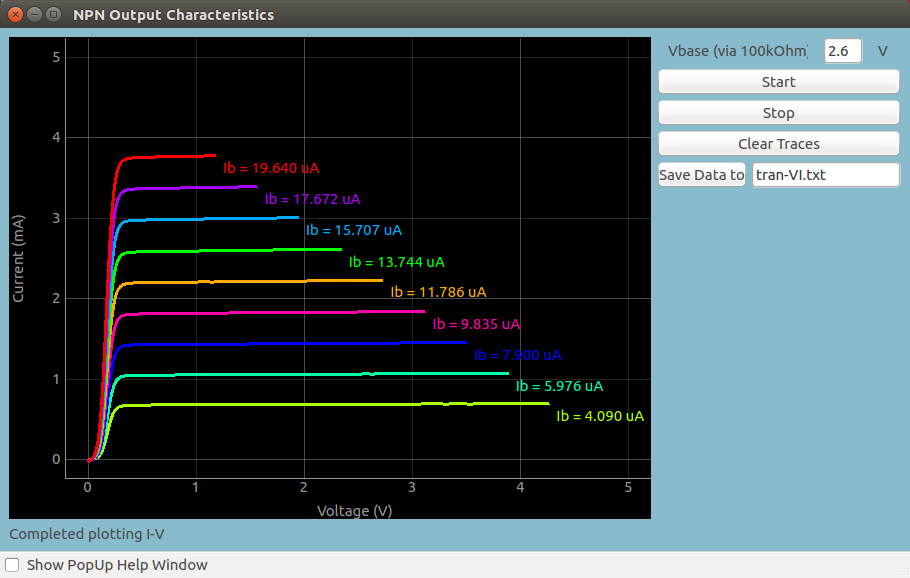

Screen shot of transistor characteristic

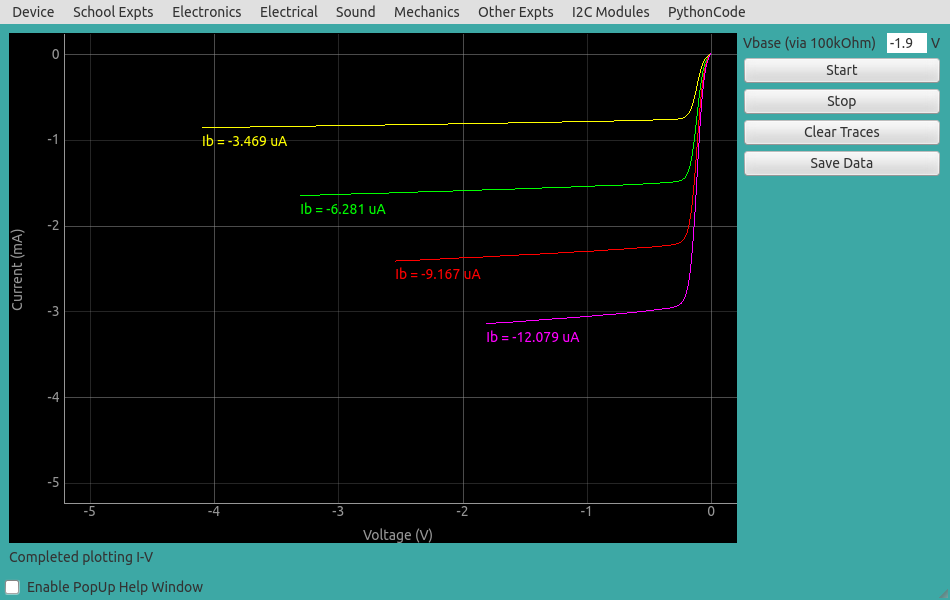

Output characteristics of PNP transistor (2N3906) is shown below
